SMC-6600 Slipform Paver 3500-6000mm Paving Width High Power Engine

Name: SMC6600 Slipform Paver 35006000mm Paving Width High Power Engine
Brand: Siming
Price: 359 USD

Quality SMC-6600 Slipform Paver 3500-6000mm Paving Width High Power Engine for sale

Place of Origin : Jiangsu, China

Brand Name : Siming

MOQ : 1

Price : $359,000

Weight : 28200 kg

Paving thickness : 0-450mm

Paving width : 3500-6000mm

Driving Speed : 0-1.5 km/h

Paving Speed : 0-7.5 m/min

Flatness : ±3 mm/3m

Vibrator brand : WYCO

Vibrator interface : 16

Vibrator frequency : 0-167 Hz

Fuel tank : 370L

Water tank : 400L（standard）+140L*4(optional)

Engine : Shangchai SC7H240G4

Rate power : 177Kw/2200rpm

Emission standard : Phase Ⅳ(Phase Ⅲ optional)

Transport size : 11740*2800*3220 mm

Contact Now

Application conditions:

SMC-6600 cement concrete slip form paver is a multi-purpose cement concrete construction equipment independently developed by our
company. It is widely used in the construction fields of various grades of highways, high-speed railway subgrade, airport and rail
transit concrete base. It replaces the traditional process and greatly improves the construction quality and efficiency of the
above cement concrete structures.
The machine has large power reserve, full electronic control, full hydraulic power drive, four crawler walking, and is equipped
with automatic steering and automatic leveling control system to complete the process flow of vibration, paving, forming and
plastering of cement concrete structures at one time.

Paving width	3500-6000 mm
Paving height	0-450 mm
Flatness	±3 mm/3m
Paving Speed	0-7.5 m/min
Driving speed	0-1.5 km/h
Vibrator brand	WYCO
Vibrator interface	16
Vibrator frequency	0-167 Hz
Frul tank	370L
Water tank	400L（standard）+140L*4(optional)
Engine	Shangchai SC7H240G4
Rate power	177Kw/2200rpm
Emission standard	Phase Ⅳ(Phase Ⅲ optional)
Feed system	Spiral
Weight	28.2t
Transport size(LWH)	1174028003220 mm

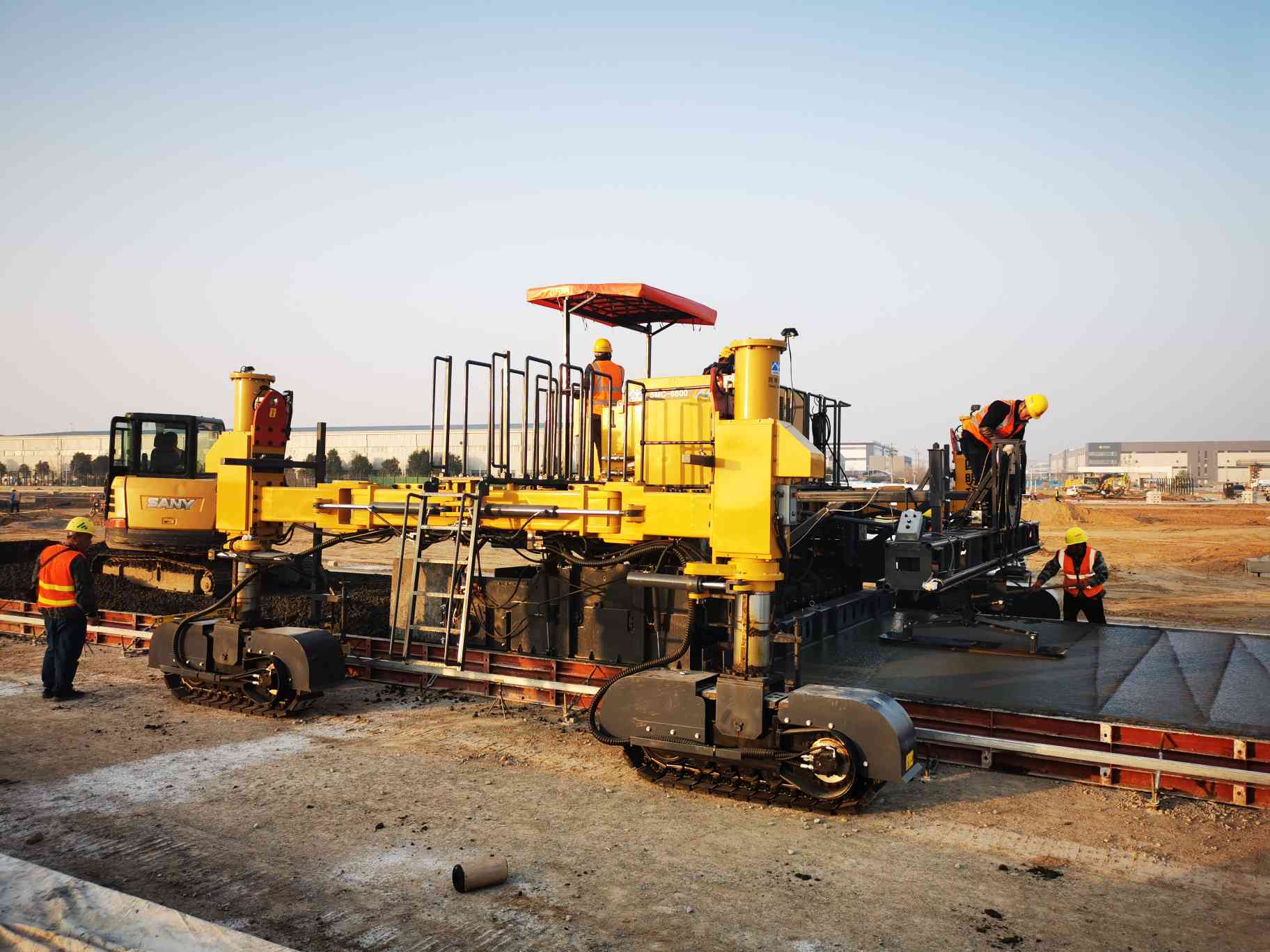

SMC-6600 Slipform Paver 3500-6000mm Paving Width High Power Engine

Functional features:
Power System
1. Equipped with a water-cooled engine,powerful and reliable in operation.
2. Equipped with a parallel three in one large-sized radiator,forced air cooling,and significant heat dissipation effect.

Hydraulic System
1. Four pump load sense hydraulic system from well-known international brands.
2. The inlet and outlet ports of the pump are equipped with high quality filters.

Electronic Control system
1. Color graphic and text display on the main console with fault diagnosis,working status,and alarm.
2. The steering,grade,and slope of slipform paver are electronic automatic control, and the sensors and controllers communicate
by CAN-bus.
3. Configure four longitudinal slope sensors and two steering sensors.

Traveling Device
1.Four-track hydraulic drive,high traction.
2. Load sense hydraulic drive with low system heating.

Vibration Compaction System
1.High quality hydraulic vibrator with square head shell.
2.Equipped with 16 standard vibration circuits(additional 6 circuits option),with stepless frequency adjustable from 0 to167Hz.
concrete spreading system
1. Use a dump truck to directly unload the concrete in front of the paver,and spread the irregular concrete pile with an
excavator.
2. Two hydraulic driven spreading augers with independent control and infinitely adjustable revolution.

Water System
1. Type: High pressure washer with water gun.
2. One Standard water tank capacity is 400L,four 130L tanks option.

Tamper Bar Device
1. Hydraulic driven stepless frequency regulation.
2. Push down the surface coarse aggregate to create a surface slurry layer.

1.Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2.Q: What certificates are available in Machinery?
A: For the certificate, we have ISO certificate,

3.Q: What about the delivery time?
A: 7-30 days after receiving the deposit.

4.Q: What about the warranty time?
A:: 12 months after shipment .

5. Q: What about the Minimum Order Quantity?
A:: The MOQ is 1 pcs
