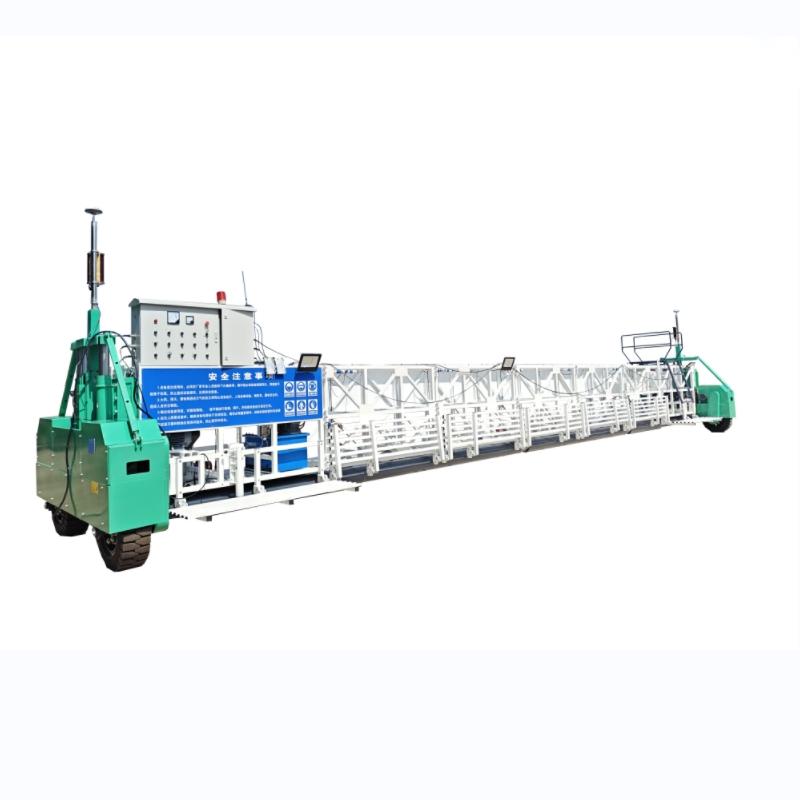

SMP-1200 Concrete Spreader Slipform Paver for Bridge Deck Paving

Name: SMP1200 Concrete Spreader Slipform Paver for Bridge Deck Paving
Brand: Siming
Price: 29 USD

Quality SMP-1200 Concrete Spreader Slipform Paver for Bridge Deck Paving for sale

Place of Origin : Jiangsu, China

Brand Name : Siming

MOQ : 1

Price : $29,000

Weight : 7000 kg

Power Supply : 380V

Equipped power : ≥28KW

Roller drive motor : 7.5kW

Walking drive motor : 1kW

Spread width : ≤16m

Walking speed : 0-10m/min

Paving speed : 0-5m/min

Water tank capacity : 300L

Hydraulic oil volume : 80L

Rod shaft diameter : φ219mm

Rod shaft speed : 240rpm

Vibration frequency : ≥3000次/min

Display interface : 10" touch color display

Elevation control : Laser automatic positioning

Contact Now

Features

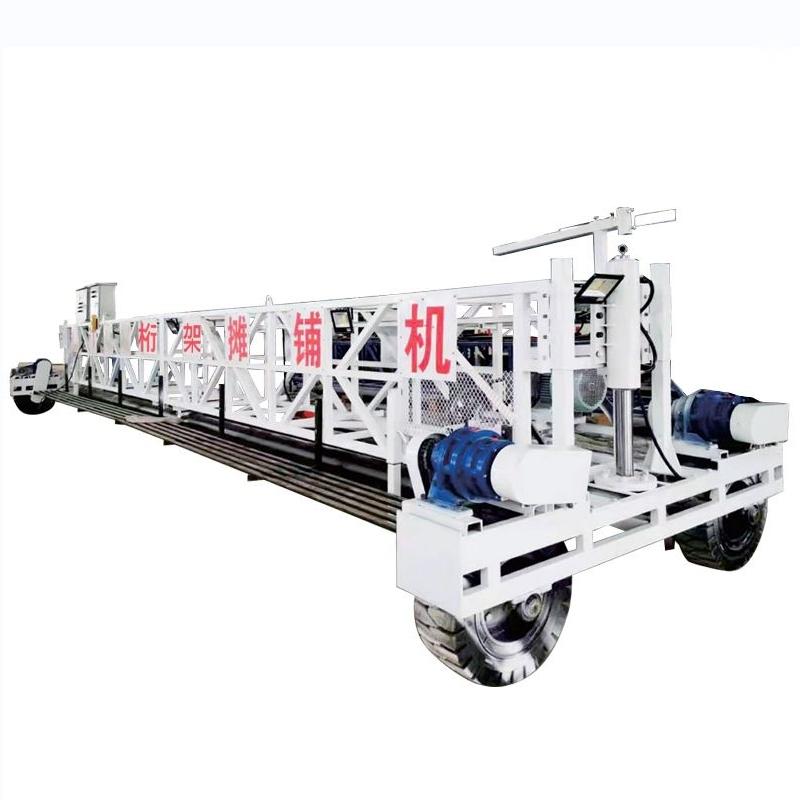

The modular assembly mode of the whole machine truss adopts a split composite connection for the roller shaft, which is easy
to install and can expand the combination to different widths, making it suitable for the use of bridge decks with different
widths and improving equipment utilization.

Technical Parameters
Power Supply	380V
Equipped with power	≥28KW
Rated power of roller drive motor	7.5kW
Rated power of walking drive motor	1kW
Display interface	10 "touch color display
Operation control	Electrical cabinet control+software integration control
Paving speed	0-5m/min
Walking speed	0-10m/min
Spread width	≤16m

Water tank capacity	300L
Hydraulic oil volume	80L
Rod shaft diameter	φ219mm
Rod shaft speed	240rpm
Vibration frequency	≥3000次/min
Walking style	Four wheel drive rubber wheel walking
Elevation control method	Laser automatic positioning
Laser positioning method	Encoder automatic real-time tracking and positioning

SMP-1200 Concrete Spreader Slipform Paver for Bridge Deck Paving

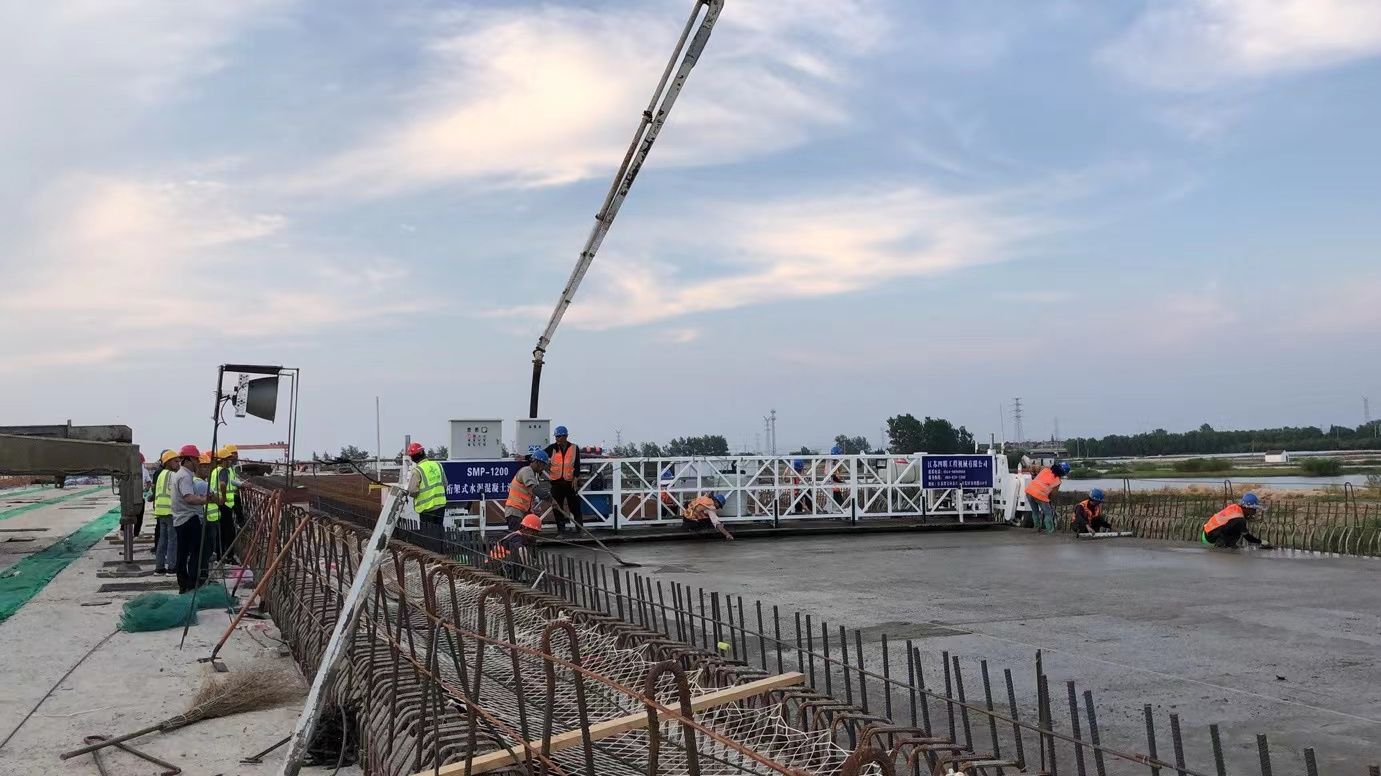

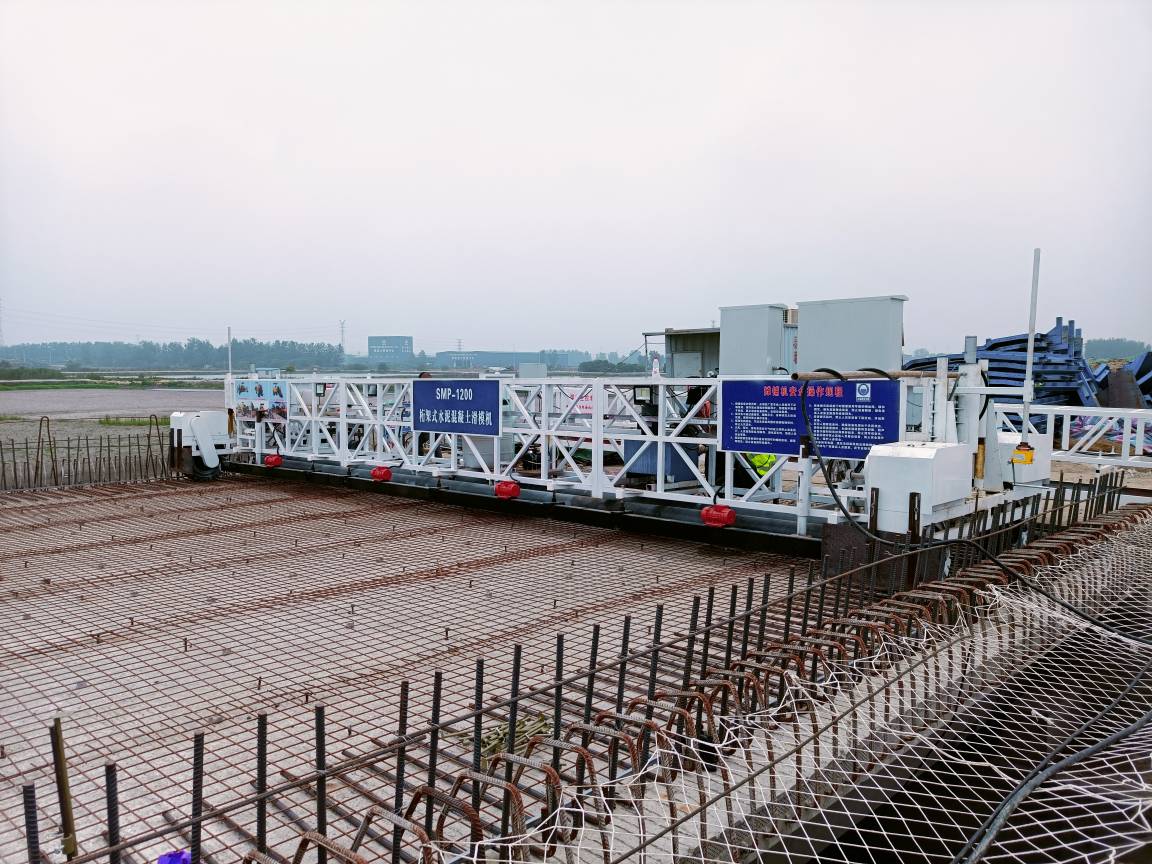

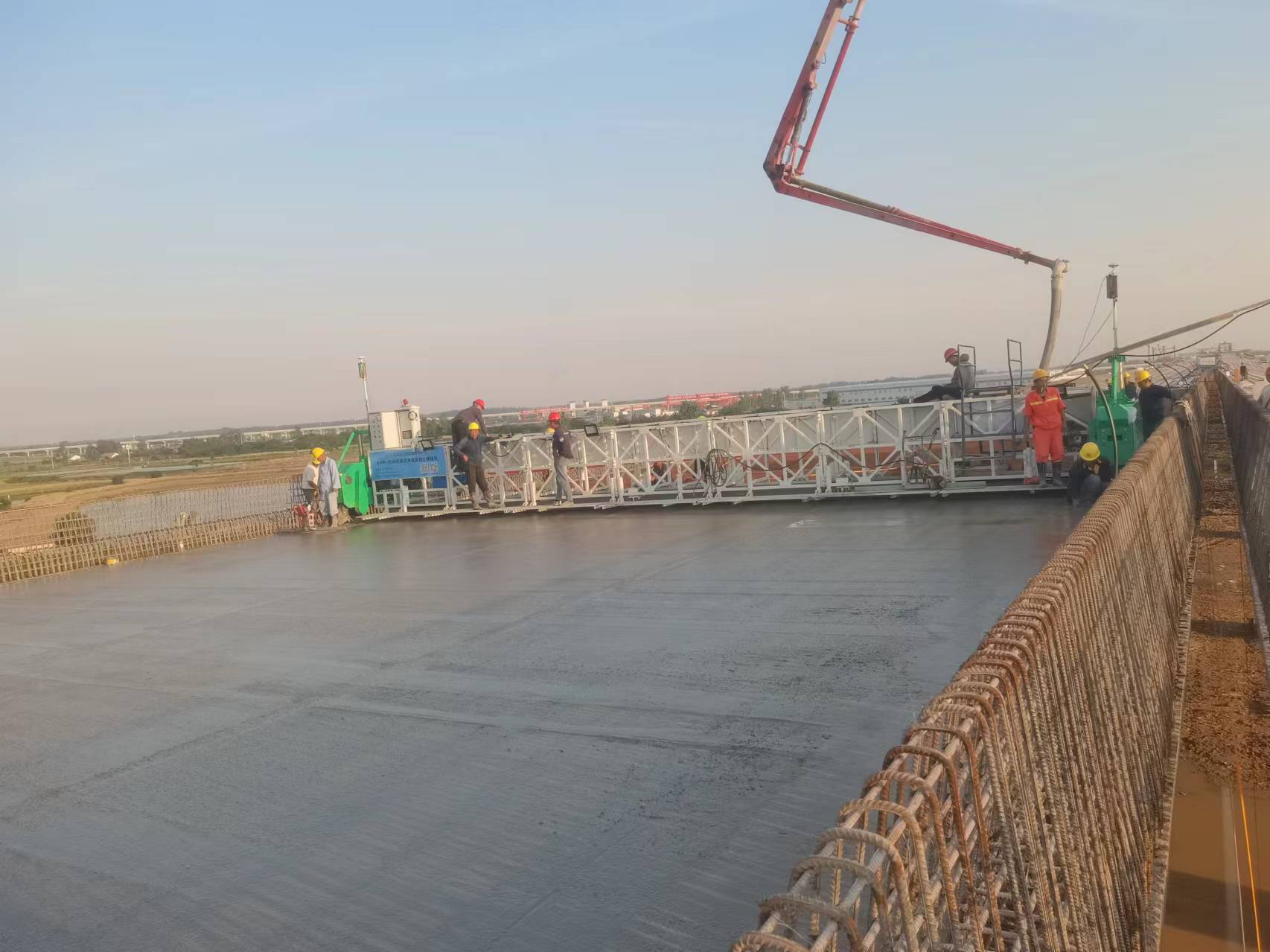

1.This equipment uses a tire walking mechanism to directly walk on the steel mesh of the bridge deck. If there are local

unevenness, the hydraulic cylinder is controlled by a high-precision digital leveling instrument to adjust the elevation. In the
case where the guardrail has already been laid, suspended structures can be used on both sides to support walking on the
guardrail;
2. Two vibrating rollers with leveling and slurry lifting functions, and the height and inclination angle of the rollers can be
adjusted up and down. At the same time, the shock-absorbing pad handwheel can be adjusted arbitrarily to achieve the adjustment of
the transverse slope of the bridge deck.

3. Equipped with a flushing system for easy daily maintenance.

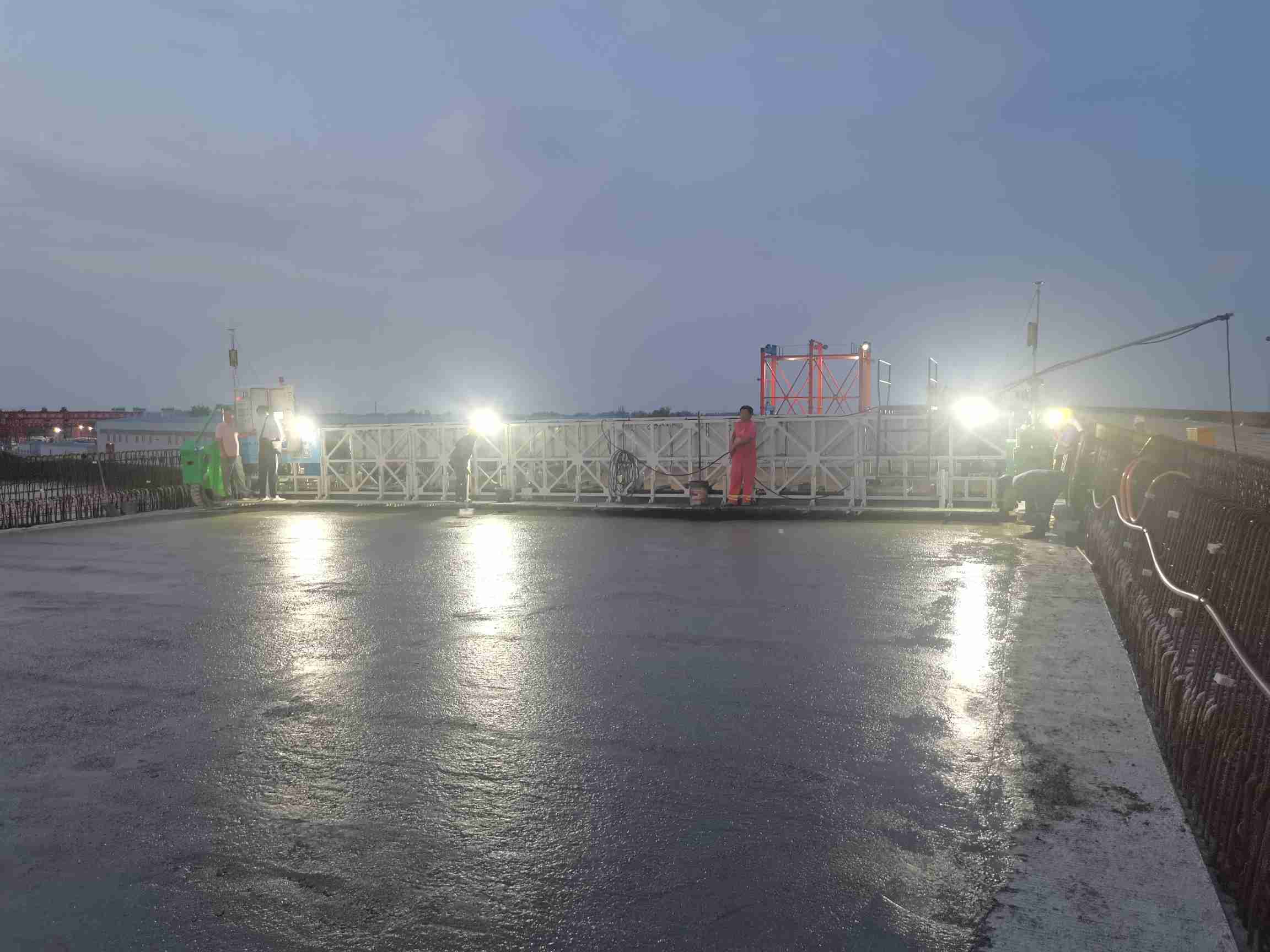

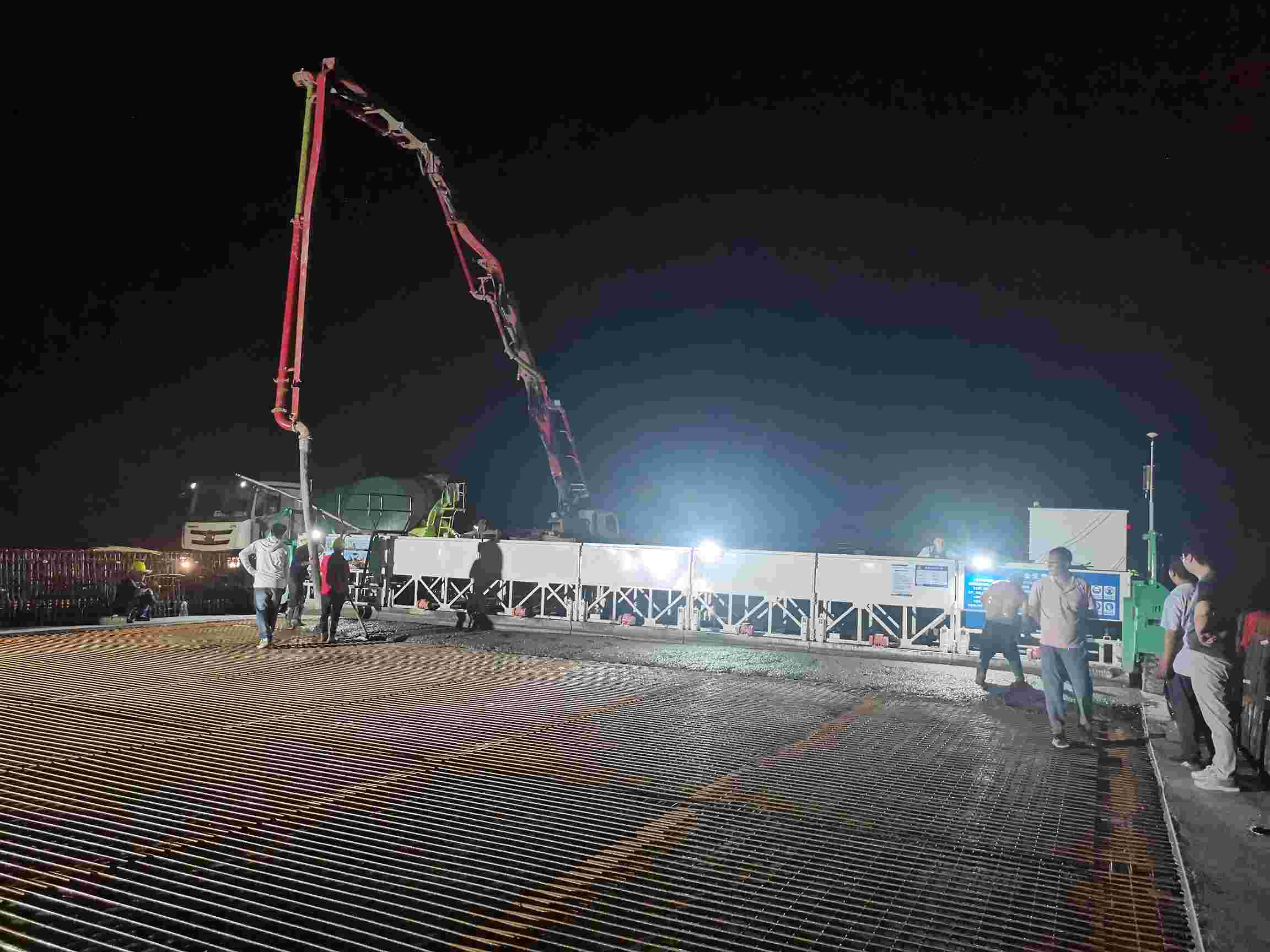

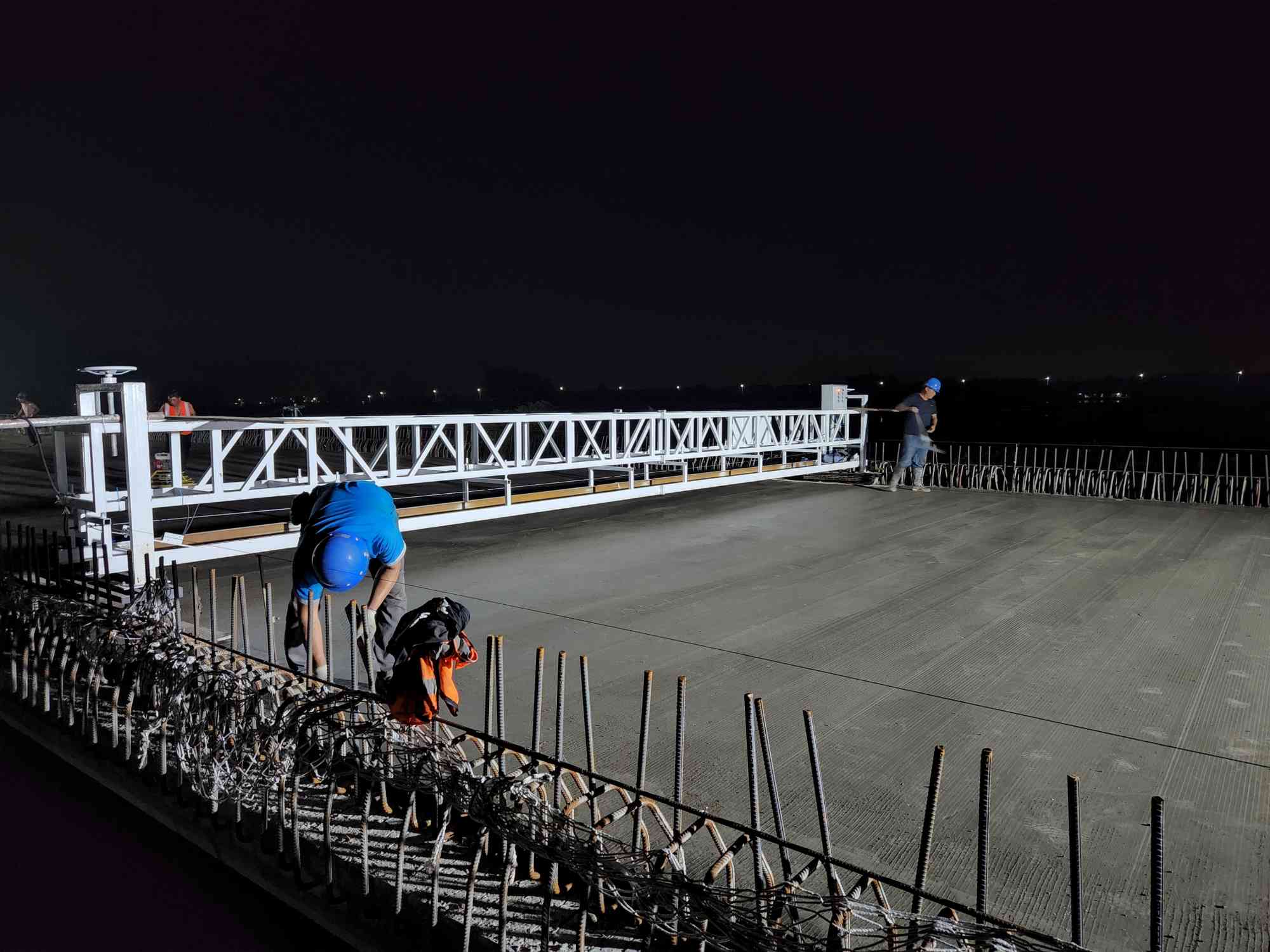

4.Provide lighting fixtures to address lighting issues during nighttime and tunnel construction.
5.The whole machine adopts high-frequency vibration pushing plate to push the material, which can keep the concrete in a light
and flowing state, and the material level is uniform and consistent.

6.Efficient compaction design effectively ensures the compactness of concrete, and can also achieve certain ideal compaction and

leveling effects for low slump concrete.
7. Using large-diameter high-speed rollers, it has a long wear resistance life, flat transverse end faces, and good linear and
slurry lifting effects.
8. High horsepower output easily maintains a high-speed and stable paving state, which is conducive to ensuring construction
quality and improving construction efficiency.

1.Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2.Q: What certificates are available in Machinery?
A: For the certificate, we have ISO certificate,

3.Q: What about the delivery time?
A: 7-30 days after receiving the deposit.

4.Q: What about the warranty time?
A:: 12 months after shipment .

5. Q: What about the Minimum Order Quantity?
A:: The MOQ is 1 pcs
