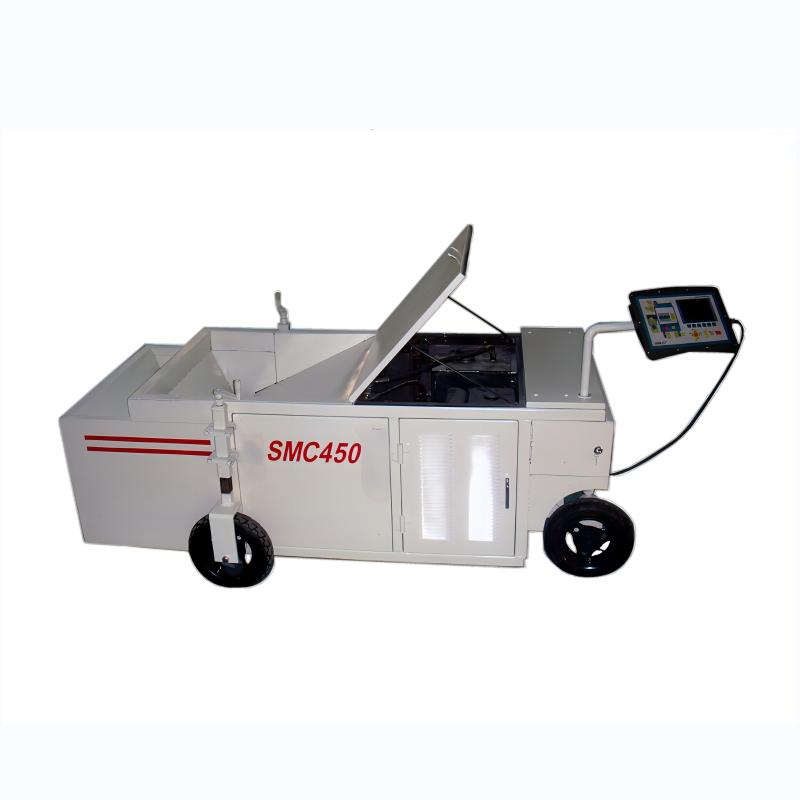

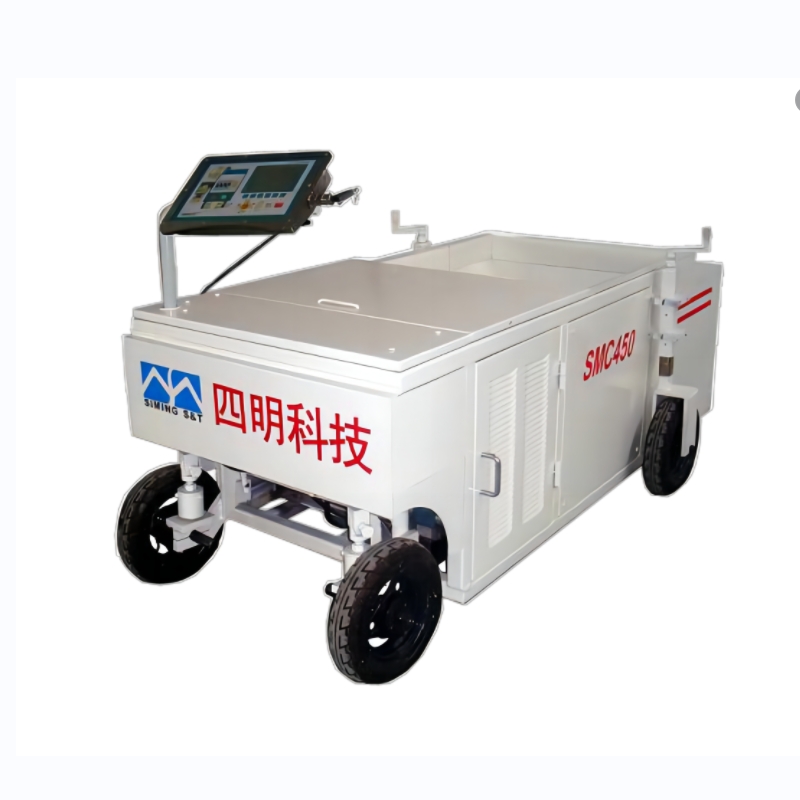

SMC-450 Hydraulic Slipform Paver for Concrete Curb Paving 0-1200mm Width

Name: SMC450 Hydraulic Slipform Paver for Concrete Curb Paving 01200mm Width
Brand: Siming
Price: 9 USD

Quality SMC-450 Hydraulic Slipform Paver for Concrete Curb Paving 0-1200mm Width for sale

Place of Origin : Jiangsu, China

Brand Name : Siming

MOQ : 1

Price : $9,700

Weight : 960 kg

Paving height : 0-450mm

Paving width : 0-1200mm

Engine model : Briggs & Stratton 3054 16hp

Paving speed : 0 ~ 3m / min

Hydraulic pump : g5-5 gear pump

Overall dimension : 240 × 92 × 88 cm

Paving size : 120 × 45 cm

Core components : Engine, hydraulic pump, vibrating spear

Drive system : Full hydraulic

Control system : High-performance sensors

Operation platform : Rotatable and disassemblable

Construction crew : 7-8 persons

Paving method : Reciprocating push hammer

Material extrusion : High-strength push hammer

Contact Now

Product description：

Smc-450 is a kind of extrusion type on-site forming slipform machine. During the construction, the mixture at the entrance of thedie is extruded by a high-strength push hammer. It has the advantages of high degree of automation and good construction quality.By changing the mold behind the main machine, various shapes of curbs and side ditches can be paved, which are widely used in theslip form construction of concrete structures such as roads, canals and dams. Compared with the traditional manual prefabrication,it has the characteristics of labor-saving, high efficiency and high intensity, so the cost is much lower than the traditionalway, at the same time, it also shortens the construction period and improves the economic benefit.

Paving width	0-1200mm
Paving height	0-450mm
Paving Speed	0 ~ 3m / min
Engine Model	Briggs & Stratton 3054 16hp
Hydraulic pump	g5-5 gear pump
Overall dimension (CM)	length 240 × width 92 × height 88
Paving size (CM)	curb width 120 × height 45

SMC-450 Hydraulic Slipform Paver for Concrete Curb Paving 0-1200mm Width

Performance characteristics:
The results show that: 1. The reciprocating push hammer is used to extrude the mixture, which enhances the applicability of the
slipform machine to different sizes of structures;

2. The steering, longitudinal slope and cross slope are automatically controlled by high-performance sensors, and the curbs are
smoother in line and smoother in surface;
3. The operation platform can be rotated and disassembled, which is easy to operate during construction and easy to remove and
protect after construction;

4. Only 7-8 persons are needed to complete the paving work (1 person driving, 1 person controlling the feeding, 1-2 persons
scraping, 2 persons curing, 2 persons arranging the steel wire baseline);
5. Full hydraulic drive, compact structure and convenient maintenance;

1.Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2.Q: What certificates are available in Machinery?
A: For the certificate, we have ISO certificate,

3.Q: What about the delivery time?
A: 7-30 days after receiving the deposit.

4.Q: What about the warranty time?
A:: 12 months after shipment .

5. Q: What about the Minimum Order Quantity?
A:: The MOQ is 1 pcs
